HOME > PRODUCT > Multi-ply Fabric Conveyor Belt

PRODUCT

Multi-ply Fabric Conveyor Belt

Characteristic.Fabric conveyor belf is made from mutiply fabric stick together by a certain method with good tensile friction resistancerubber on top and botttom.Use-'Belt is suitable for small block.granular,powder form object and for convoyance of materials in long and medium distance and higher
load and at high speed
Technical standards:GB/T7984-2001GB/T10822-2003,DIN22102,AS1332.JISK6322,etc.

PHONE

Product Details

Characteristic.Fabric conveyor belf is made from mutiply fabric stick together by a certain method with good tensile friction resistancerubber on top and botttom.

Use-'Belt is suitable for small block.granular,powder form object and for convoyance of materials in long and medium distance and higher load and at high speed

Technical standards:GB/T7984-2001GB/T10822-2003,DIN22102,AS1332.JISK6322,etc.

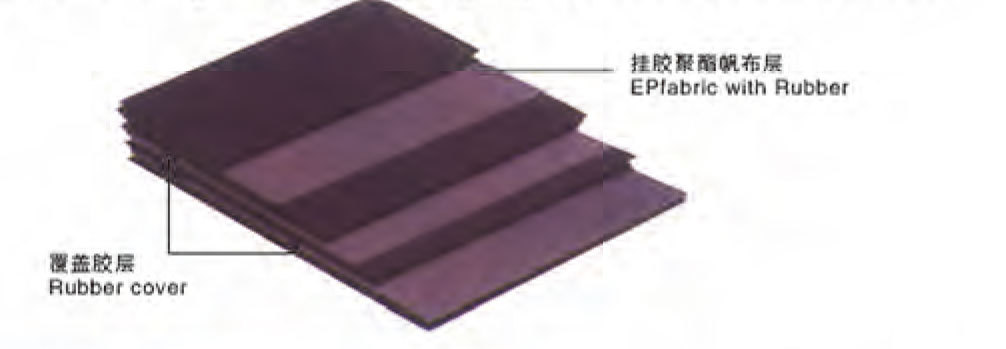

EP conveyor belt

Carcass:EP fabric (Warp polyester,weft nylon )This kind of conveyor belt is highmodulus, low elongation,impact resistant,excellent heat resistant,available forthe materials handling of heavy duty,high speed and medium distance.

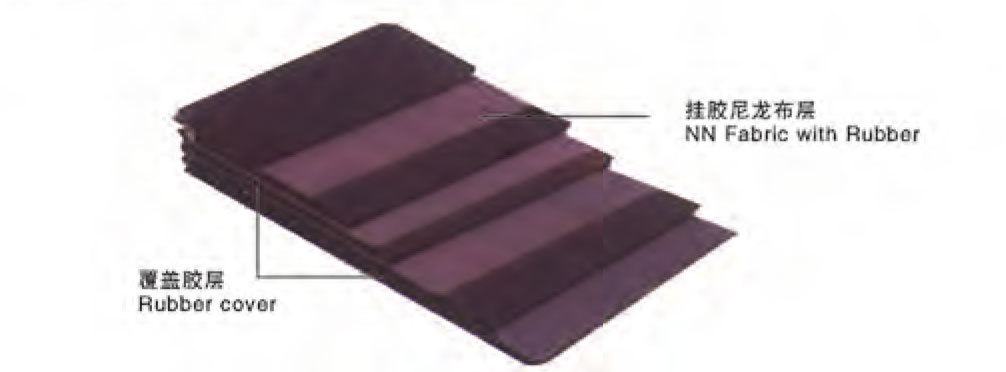

NN conveyor belt

Carcass: NN fabric (Warp nylon,weft nylon)This kind of conveyor belt is flexible,high tension,impact resistant,low elongation,available for the materials handing ofheavy duty,high speed and medium distance.

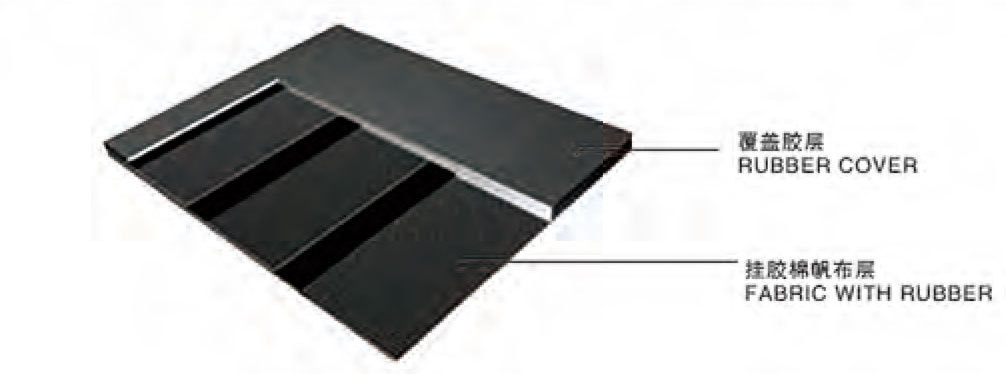

CC conveyor belt

Carcass: CC fabric This kind of conveyor belt isavailable for the materials handlingof medium distance. Fabric Conveyor Belts are named according to different covergrade.

Cold resistant Belt

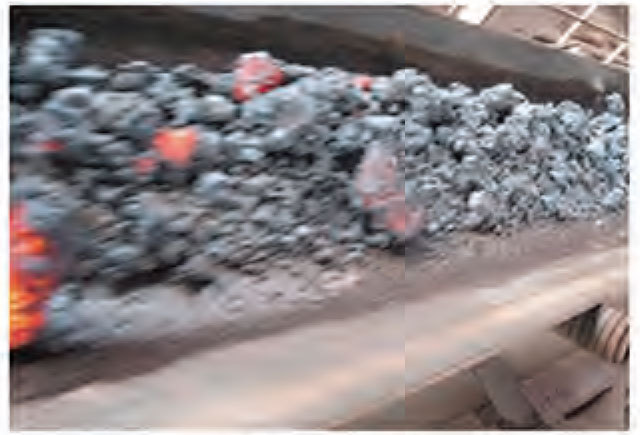

Heat Resistant Belt

Vulcanization Machine

Multi-ply Fabric Conveyor Belt

Application

Wldely used in mining,harbour,coal,metallurgy,chemical etc field for conveying materials.

Varieties

Fabric Conveyor Belt are named according to different cover grade:
1.Conventional Belt:Generally used for small powder,grain and block materials.
2.Oil Resistant Belt:Generally used for wood,grain transportation.
3.Acid/Alkali Resistant Belt:Always used in Chemical materials transprtation.
4.Cold Resistant Belt The beit can work in some cold environment,like Northeast of China,Russia and North European countries.
5.Abrasion Resistant Belt.Generally used for transport the hard or shaped materials,like iron ore,diamond,copper and other minerals.
6.Fire Resistant Belt: Always used in underground coal mining,steel works and so on.7.Heat Resistant Belt: According to the temperature of working environment,We can manufacture 3 diferent grades heatingresistant belt,include up to120'C grade(HR120),up to150 Cgrade(HR150),up to 180'C grade(HR180) and up to200'Cgrade(HR200).Generally used by cements and steel works.

FAQ

Q： Service commitment

A：

SERVICE OBJECTIVE

CUSTOMER FIRST,WITH CUSTOMER SATISFACTION AS THE SOLE CRITERION FOR MEASURING ALL WORK
SERVICE ITEMS

1.PROMOTE AND INTRODUCE OUR COMPANY AND PRODUCTS TO CUSTOMERS, HELPING THEM UNDERSTAND THE COMPANY AND ITSPRODUCTS
2 PROVIDE PFE-SALES CONSULTATION TO HELP CUSTOMERS SCIENTIFICALLY ANALYZE AND REASONABLY CHOOSE THE TYPE ANDSPECIFICATIONS OF CONVEYOR BELT PRODUCTS.
3.ASSIST CLENTS IN FORMULATING JOINT SOLUTIONS, PREPARING JOINT TOOLS AND ADHESIVES, AND PROVIDING PROFESSIONAL
TECHNICAL GUIDANCE.
4. PROVIDE ADHESIVE BONDING SERVICES FOR CONVEYOR BELTS.
5. PROVIDE INSTALLATION AND DEBUGGING SERVICES FOR CONVEYOR BELTS.
6. TRAIN CONVEYOR BELT BONDING TECHNICIANS FOR CUSTOMERS.
7. PROVIDE DAMAGE REPAIR SERVICES FOR VARIOUS CONVEYOR BELTS.

8. ACCEPT CUSTOMER CALLS, LETTERS, VISITS, AND COMPLAINTS SERVICES.

9. ESTABLISH CUSTOMER QUALITY TRACKING FILES AND CONDUCT REGULAR TELEPHONE FOLLOW UPS.

Q： Method of use and maintenance

A：

Operation&Maintenance Manual of Rubber Conveyor Belt

1. Direct sunlight or drenching should be avoided during conyeyor belt in trans and in storage.Prevent the contact withsubstances such as acid,alkaline and oils an organic solvenl and so on.and rubber belt should be placed over one meter away from a heat source.

2. The warehouse temperature should be fanging-18'C-40'C,and the reative humidity During 50-80%storage.

3. The products should be palced by rolls and should not be enfolded.

4. They should be turned and moved once a quarter dutring storage.

5. Conveyor belts of different type, specs and layer Should not be spliced and used.For splicing,the best way is viaagglutination method.
6. The matching of drive durm diameter and the number of bell layers,the collocation of the drive drum withturnaboutdrum,and the requirement on the well,angle of carrying roller should be stipulated in accordance with the conveyor designand selected reasonably.
